Towards the Era of Post-Training for Physical AI

The missing infrastructure for Physical AI post-training in AD. Open-source. Production-validated.

Joint effort by OpenDriveLab at The University of Hong Kong, Huawei Inc. and Shanghai Innovation Institute (SII).

Table of Contents

• Highlights
• News
• Benchmark
  • Qualitative Results — Closed-Loop Simulation on nuPlan
  • On-Road Deployment — Night Urban Driving
• System Architecture
• Roadmap
• Getting Started
  • Documentation Overview
  • Installation
  • Quick Test
  • Deep Dive by Module
    • SimEngine - Photorealistic Closed-Loop Simulation
    • AlgEngine - End-to-End Model Training & Fine-Tuning
    • Scene Reconstruction - 3D Gaussian Splatting-based method, MTGS
• Citation
• Contributing
• License
• Related Resources

Highlights

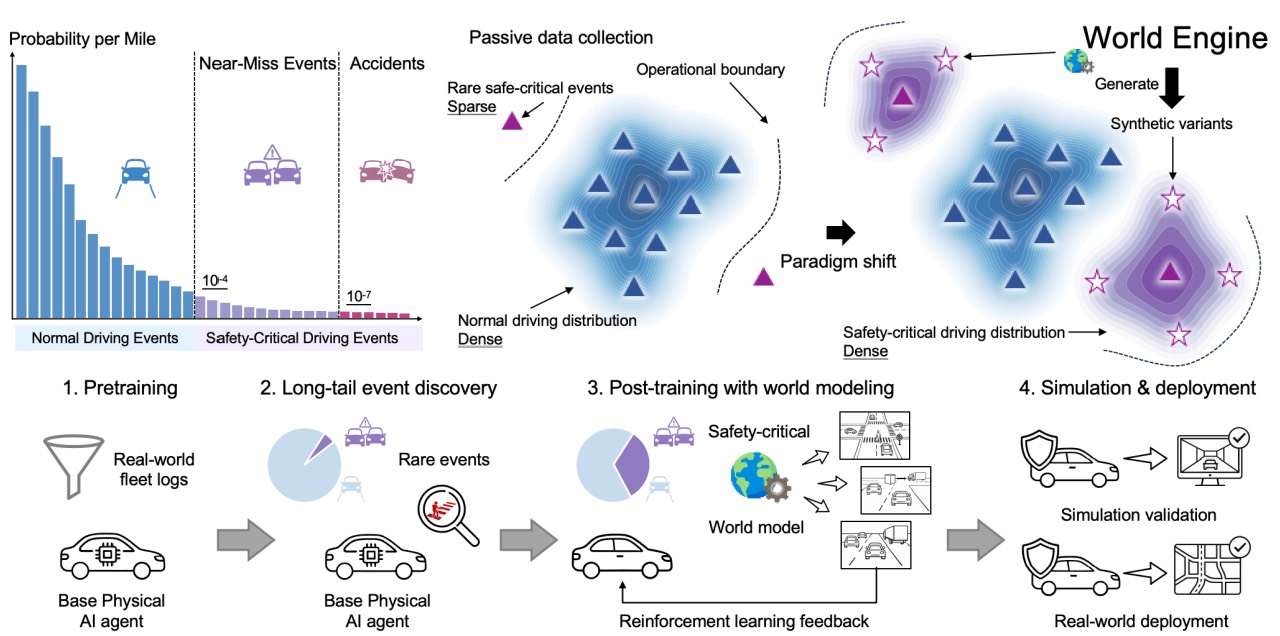

• WorldEngine is a post-training framework for Physical AI that systematically addresses the long-tail safety-critical data scarcity problem in autonomous driving.
• Data-driven long-tail discovery: Failure-prone scenarios are automatically identified from real-world driving logs by the pre-trained agent itself — no manual design, no synthetic perturbations.
• Photorealistic interactive simulation via 3D Gaussian Splatting (3DGS): Each discovered scenario is reconstructed into a fully controllable, real-time-renderable simulation environment with independent dynamic agent manipulation.
• Behavior-driven scenario generation: Leverages Behavior World Model (BWM) to generalize and synthesize diverse traffic variations from existing long-tail scenarios, expanding sparse safety-critical events into a dense, learnable distribution.
• RL-based post-training on synthesized safety-critical rollouts substantially outperforms scaling pre-training data alone — competitive with a ~10× increase in pre-training data.
• Production-scale validation: Deployed on a mass-produced ADAS platform trained on 80,000+ hours of real-world driving logs, reducing simulated collision rate by up to 45.5% and achieving zero disengagements in a 200 km on-road test.

News

• [2026/04/09] Official dataset released. See OpenDriveLab/WorldEngine or OpenDriveLab/WorldEngine (ModelScope)
• [2026/04/10] Official code repository established.

Benchmark

We compare different post-training paradigms on the nuPlan dataset, evaluating on both open-loop and closed-loop metrics across common and rare driving scenarios.

Metric notes: Early stage. Stable ckpts and corresponding results coming soon.

• Open-loop PDMS is aligned with NAVSIM v1.1 PDM Score. Common denotes the standard navtest split; Rare denotes the navtest_failures subset — failure-prone rare-case scenarios extracted from navtest.
• Closed-loop Success Rate is defined as the fraction of simulated driving episodes completed without collision or off-road failure.
• Closed-loop PDMS* is the PDM Score obtained via SimEngine closed-loop testing, where the planner interacts with reactive agents in simulation under real-time rendering.

Training notes:

• Rare logs are failure-prone scenarios automatically extracted from navtrain by the pre-trained agent itself (see Rare Case Extraction).
• Common logs are the standard cases in navtrain.

Method	Open-loop PDMS ↑ (common)	Open-loop PDMS ↑ (rare)	Closed-loop Success Rate ↑	Closed-loop PDMS* ↑
Base model	85.62	47.15	73.61	60.28
Supervised fine-tuning on rare logs	87.03	49.68	73.26	62.26
Post-training on common logs	86.15	51.49	64.58	56.66
Post-training on rare logs	89.29	62.56	74.31	62.55
Post-training on rare synthetic replays	88.01	56.62	76.39	62.11
Post-training on rare rollouts w/o Behaviour WM	88.99	59.69	85.07	68.29
Post-training with WorldEngine	88.95	59.83	88.89	70.12

Key findings:

• Post-training on rare logs significantly outperforms supervised fine-tuning (62.56 vs 49.68 open-loop rare PDMS), demonstrating the advantage of reward-guided optimization over imitation.
• Post-training on common logs provides limited benefit and even degrades closed-loop performance (success rate drops from 73.61% to 64.58%), confirming that long-tail event discovery is essential.
• The full WorldEngine pipeline achieves the best closed-loop performance (88.89% success rate, 70.12 PDMS*), a +15.28% absolute improvement in success rate over the base model.

Qualitative Results — Closed-Loop Simulation on nuPlan

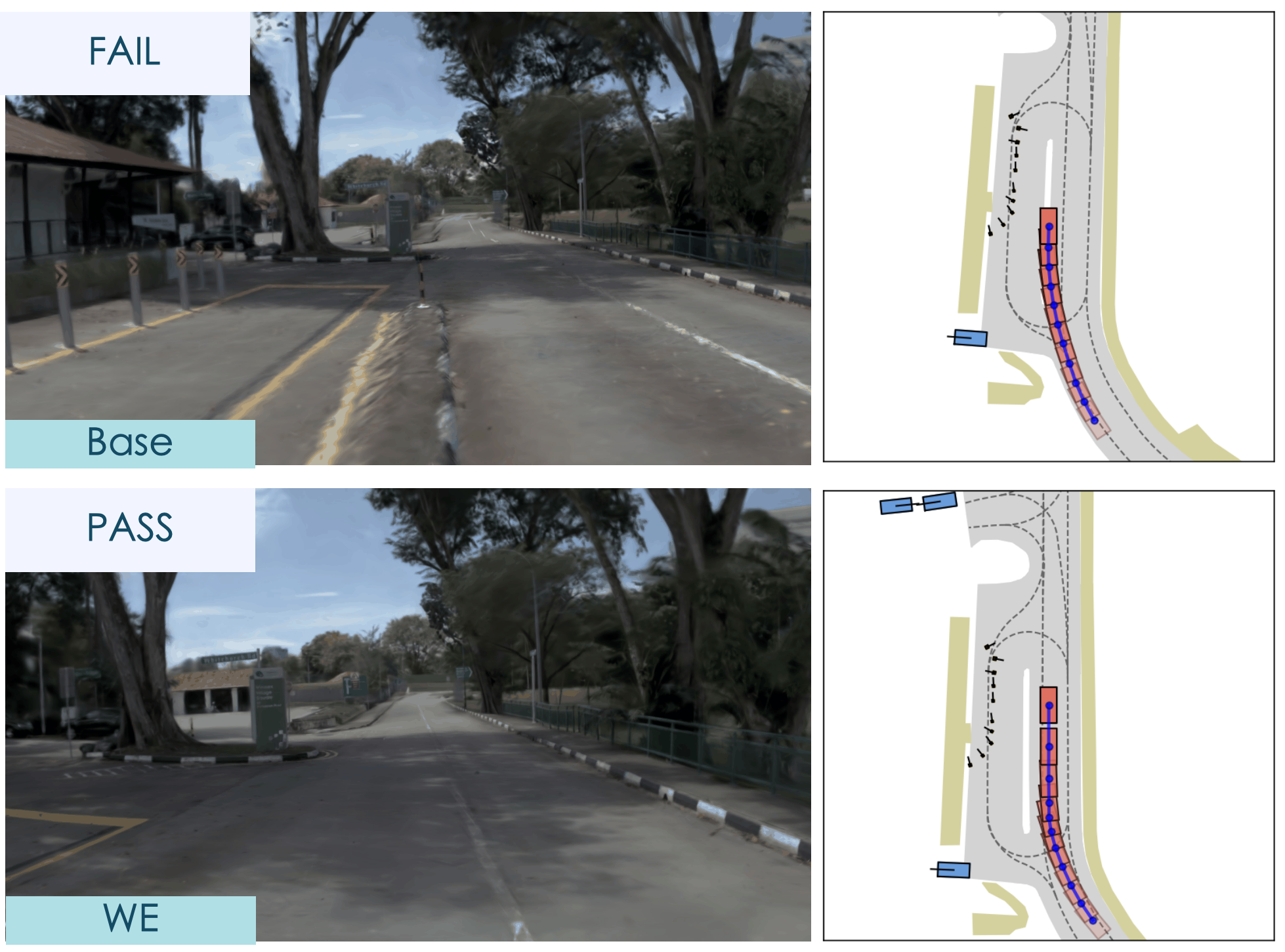

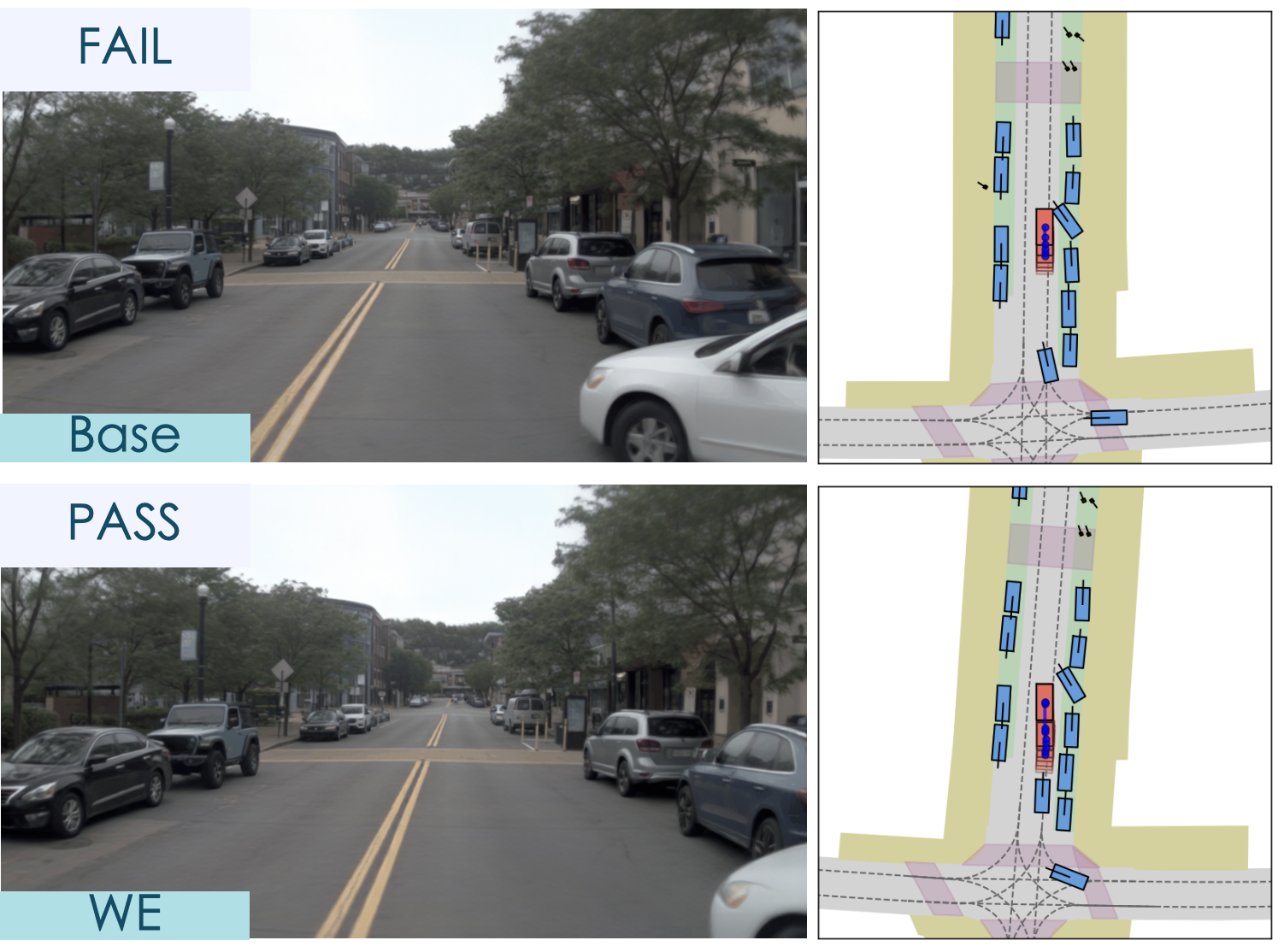

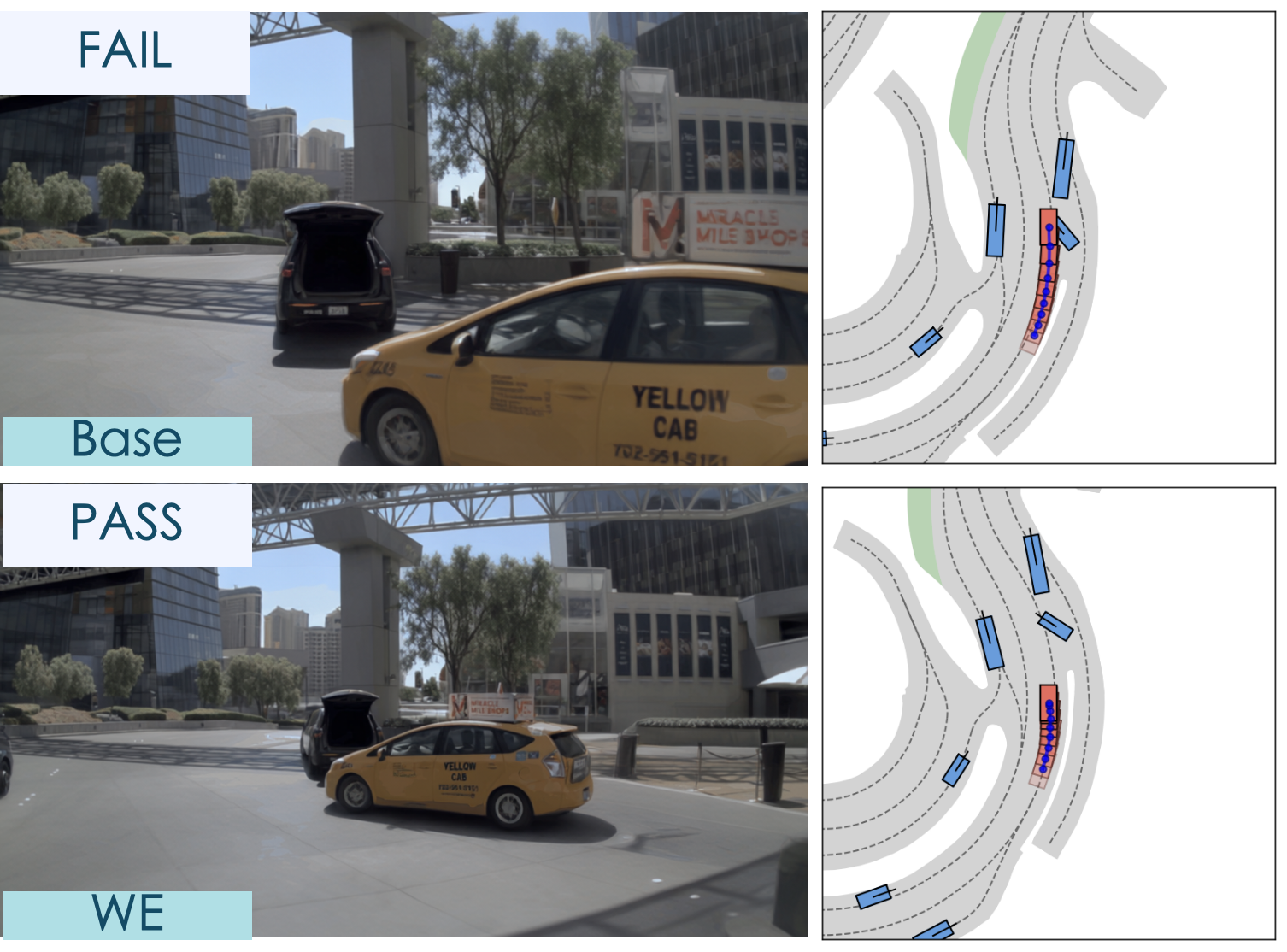

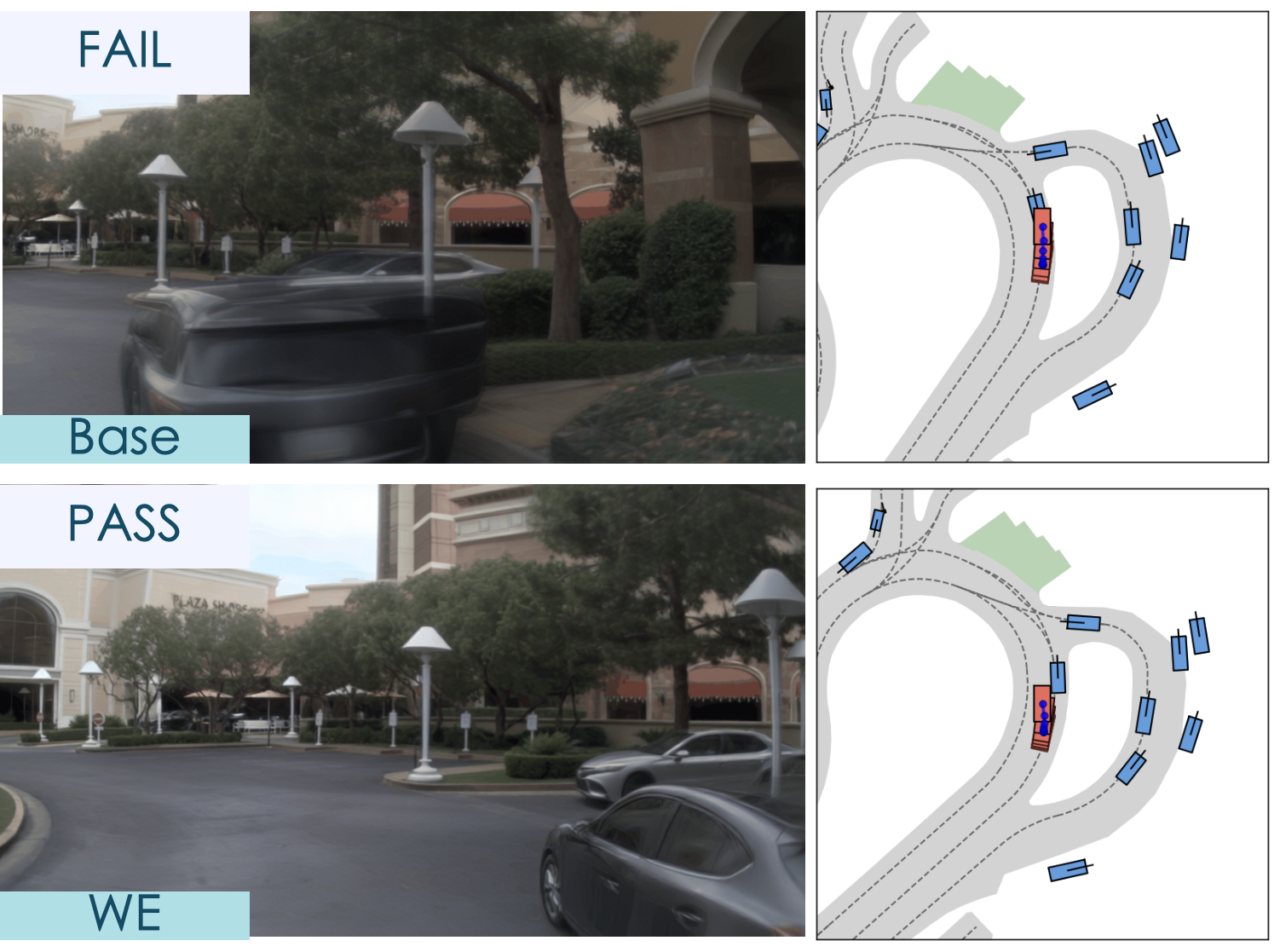

Each pair shows the Base model vs WorldEngine post-trained model on the same rare-case scenario. Left: front-camera rendering; Right: BEV trajectory visualization.

On-Road Deployment — Night Urban Driving

Zero disengagements in 200 km on-road testing on a mass-produced ADAS platform.

System Architecture

WorldEngine consists of two tightly coupled subsystems:

Module	Function	Core Technology
SimEngine	Closed-loop simulation with ego & agents	Hydra, Ray, rendering
AlgEngine	End-to-end model training & evaluation	MMDetection3D, UniAD/VADv2/HydraMDP

Roadmap

• Core platform integration (SimEngine + AlgEngine)
• Multi-GPU distributed simulation and training
• Rare case extraction and fine-tuning pipeline
• Comprehensive documentation and usage guides
• Hugging Face / ModelScope dataset
• Open-source release (code, data, early pre-trained models)
• arXiv preprint
• Behavior World Model integration
• Stable pre-trained models

Getting Started

Documentation Overview

WorldEngine provides comprehensive guides for each stage of your workflow:

Guide	Purpose	Key Topics
Installation	Set up both conda environments	Two-environment setup (simengine + algengine), dependencies, troubleshooting
Data Organization	Prepare datasets and checkpoints	Data structure, Hugging Face/ModelScope downloads, symlinks
Quick Start	Run your first experiment in 5 min	Quick test tutorial, understanding results, complete pipeline
SimEngine Usage	Master closed-loop simulation	Rollout scripts, distributed testing, configuration, metrics
AlgEngine Usage	Train and fine-tune models	Training from scratch, evaluation, rare case extraction, RL fine-tuning

Installation

WorldEngine requires two separate conda environments due to different Python requirements.

Full installation guide: docs/installation.md

Quick Test

Verify your installation with a pre-trained model:

# Set up environment variable
export WORLDENGINE_ROOT=$(pwd)

# Option 1: Single GPU test
bash scripts/closed_loop_test.sh

# Option 2: Multi-GPU test (Default 8 GPUs)
bash scripts/multigpu_closed_loop_test.sh

What this does:

• Loads a pre-trained VADv2 model (50% training data, epoch 8)
• Runs closed-loop simulation on 288 rare-case test scenarios
• Evaluates with navsim v1 PDMS (collision avoidance, progress, comfort, etc.)
• Saves results to experiments/closed_loop_exps/e2e_vadv2_50pct/navtest_failures_NR/

Detailed quick start tutorial: docs/quick_start.md

Deep Dive by Module

After the quick test, explore each subsystem in detail:

SimEngine - Photorealistic Closed-Loop Simulation

Learn how to run simulations, generate rollouts, and test models:

• Rollout scripts for data generation (no model required)
• Testing scripts for model evaluation (single/multi-GPU)
• Ray distributed simulation for large-scale testing
• Reactive vs non-reactive agent modes
• Configuration guide for all Hydra parameters

SimEngine Usage Guide

AlgEngine - End-to-End Model Training & Fine-Tuning

Learn how to train models, extract rare cases, and fine-tune:

• Training from scratch
• Open-loop evaluation on test sets
• Rare case extraction from evaluation failures
• RL-based fine-tuning on long-tail scenarios
• Multi-GPU training with distributed data parallel

AlgEngine Usage Guide

Scene Reconstruction - 3D Gaussian Splatting-based method, MTGS

WorldEngine's simulation environments are powered by 3D Gaussian Splatting (MTGS):

• Multi-traversal reconstruction from nuPlan data
• Photorealistic rendering for closed-loop simulation
• Asset generation for SimEngine scenes

MTGS Repository

Citation

If any parts of our work help your research, please consider citing us and giving a star to our repository:

If you use the Render Assets (MTGS), please also cite:

@article{li2025mtgs,
  title={MTGS: Multi-Traversal Gaussian Splatting},
  author={Li, Tianyu and Qiu, Yihang and Wu, Zhenhua and Lindstr{\"o}m, Carl and Su, Peng and Nie{\ss}ner, Matthias and Li, Hongyang},
  journal={arXiv preprint arXiv:2503.12552},
  year={2025}
}

If you use the augmented scenarios data, please cite as well:

@inproceedings{zhou2025nexus,
  title={Decoupled Diffusion Sparks Adaptive Scene Generation},
  author={Zhou, Yunsong and Ye, Naisheng and Ljungbergh, William and Li, Tianyu and Yang, Jiazhi and Yang, Zetong and Zhu, Hongzi and Petersson, Christoffer and Li, Hongyang},
  booktitle={ICCV},
  year={2025}
}

@article{li2025optimization,
  title={Optimization-Guided Diffusion for Interactive Scene Generation},
  author={Li, Shihao and Ye, Naisheng and Li, Tianyu and Chitta, Kashyap and An, Tuo and Su, Peng and Wang, Boyang and Liu, Haiou and Lv, Chen and Li, Hongyang},
  journal={arXiv preprint arXiv:2512.07661},
  year={2025}
}

If you find AlgEngine well, please cite as well:

@ARTICLE{11353028,
  author={Liu, Haochen and Li, Tianyu and Yang, Haohan and Chen, Li and Wang, Caojun and Guo, Ke and Tian, Haochen and Li, Hongchen and Li, Hongyang and Lv, Chen},
  journal={IEEE Transactions on Pattern Analysis and Machine Intelligence},
  title={Reinforced Refinement With Self-Aware Expansion for End-to-End Autonomous Driving},
  year={2026},
  volume={48},
  number={5},
  pages={5774-5792},
  keywords={Adaptation models;Self-aware;Autonomous vehicles;Pipelines;Planning;Training;Reinforcement learning;Uncertainty;Data models;Safety;End-to-end autonomous driving;reinforced finetuning;imitation learning;motion planning},
  doi={10.1109/TPAMI.2026.3653866}}

Contributing

We welcome contributions from the community! Whether you want to:

• Report bugs - Open an Issue
• Improve documentation - Submit a Pull Request
• Contribute code - Fork, develop, and submit a PR

Please read our contributing guidelines before submitting PRs.

For questions:

1. Check the documentation first
2. Search existing Issues

License

All content in this repository is under the Apache-2.0 license.

The released data is based on nuPlan and is under the CC-BY-NC-SA 4.0 license.
