feat(ui): make file and hunk spacing configurable - #865

Open
Ajay-Satish-01 wants to merge 1 commit into
modem-dev:mainfrom
Ajay-Satish-01:configurable_space
Open

feat(ui): make file and hunk spacing configurable#865
Ajay-Satish-01 wants to merge 1 commit into
modem-dev:mainfrom
Ajay-Satish-01:configurable_space

Conversation

@Ajay-Satish-01

@Ajay-Satish-01 Ajay-Satish-01 commented Aug 26, 2026

Copy link
Copy Markdown

Summary

  • Adds file_gap / --file-gap (0–8, default 1) so the space between files in the review stream is configurable. 1 keeps the current rule, 0 hides it, and larger values add blank rows above the rule.
  • Adds hunk_gap / --hunk-gap (0–8, default 0) so later hunks can have blank rows before @@ (still inserted when hunk headers are hidden).
  • This is presentation-only in the TUI/OpenTUI stream (not shared review geometry, View-menu persistable, static pager, or browser CSS).

Fixes #839

Test plan

  • bun run start -- diff --no-sidebar --mode stack --file-gap 3 --hunk-gap 2 on a repo with at least two files and two hunks
  • --file-gap 0 hides the ; --file-gap 1 is the current look
  • --hunk-gap 2 puts two blanks before later @@; first file/hunk stay flush
  • --no-hunk-headers --hunk-gap 2 still inserts blanks before later hunk content
  • Config file_gap / hunk_gap apply; CLI flags override; --file-gap 9 and --hunk-gap abc error
  • [ / ] still land on hunk content, not the spacer

Verified: unit tests for parse/config/plan/geometry; PTY layout tests for --file-gap 3 and --hunk-gap 2; live PTY frames for 0/1/3 file gaps and 0/2 hunk gaps (including hidden headers). format:check, lint, typecheck, check:docs, deps:check, and bun run test passed.

Screenshots

Real Hunk TUI (PTY capture), 100×32, --no-sidebar --mode stack, default theme, macOS.

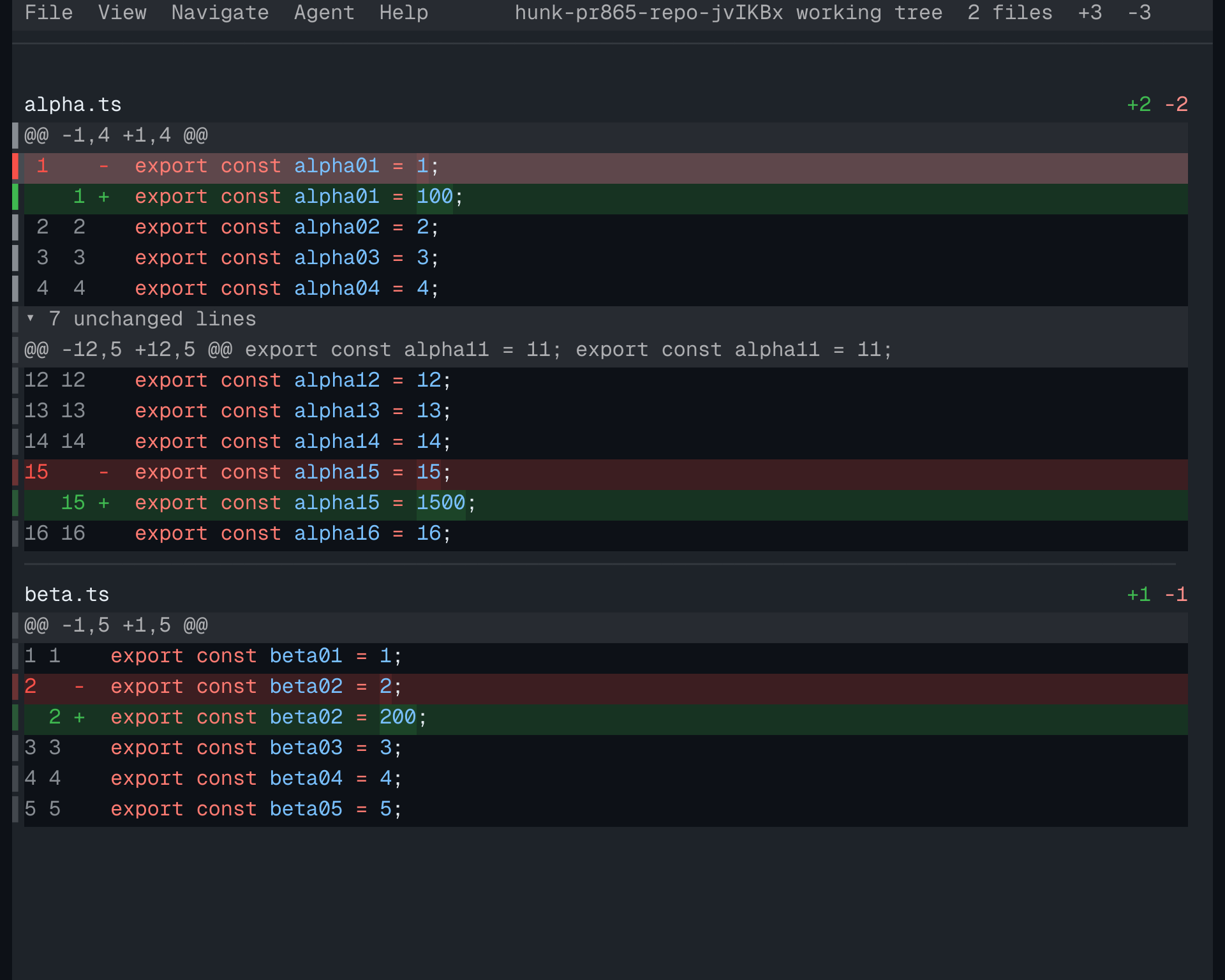

Default look (file_gap=1, hunk_gap=0)

One rule between files; no extra space before later hunks.

Default file and hunk spacing

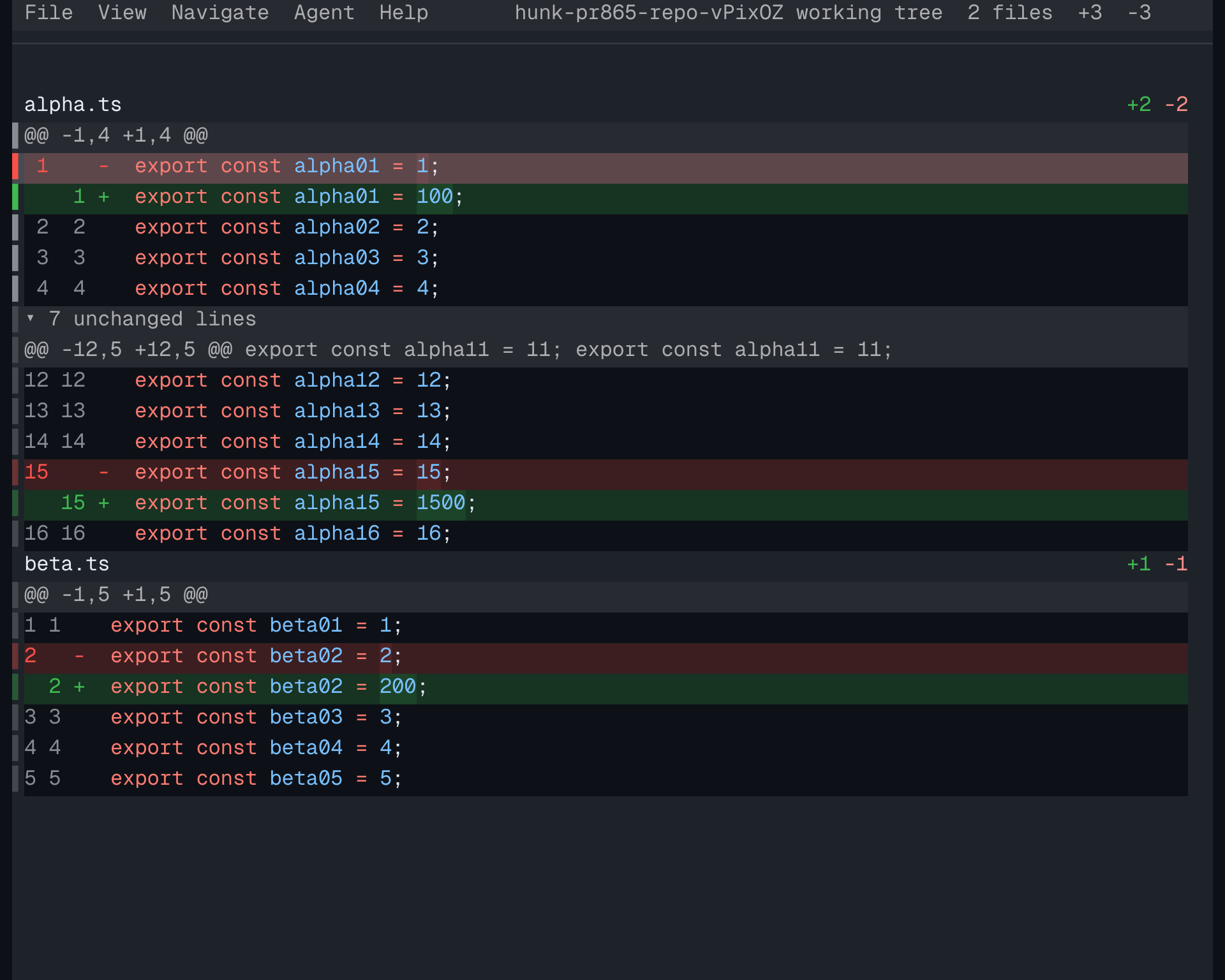

--file-gap 0

Hides the ; the next file header sits on the previous body.

file-gap 0

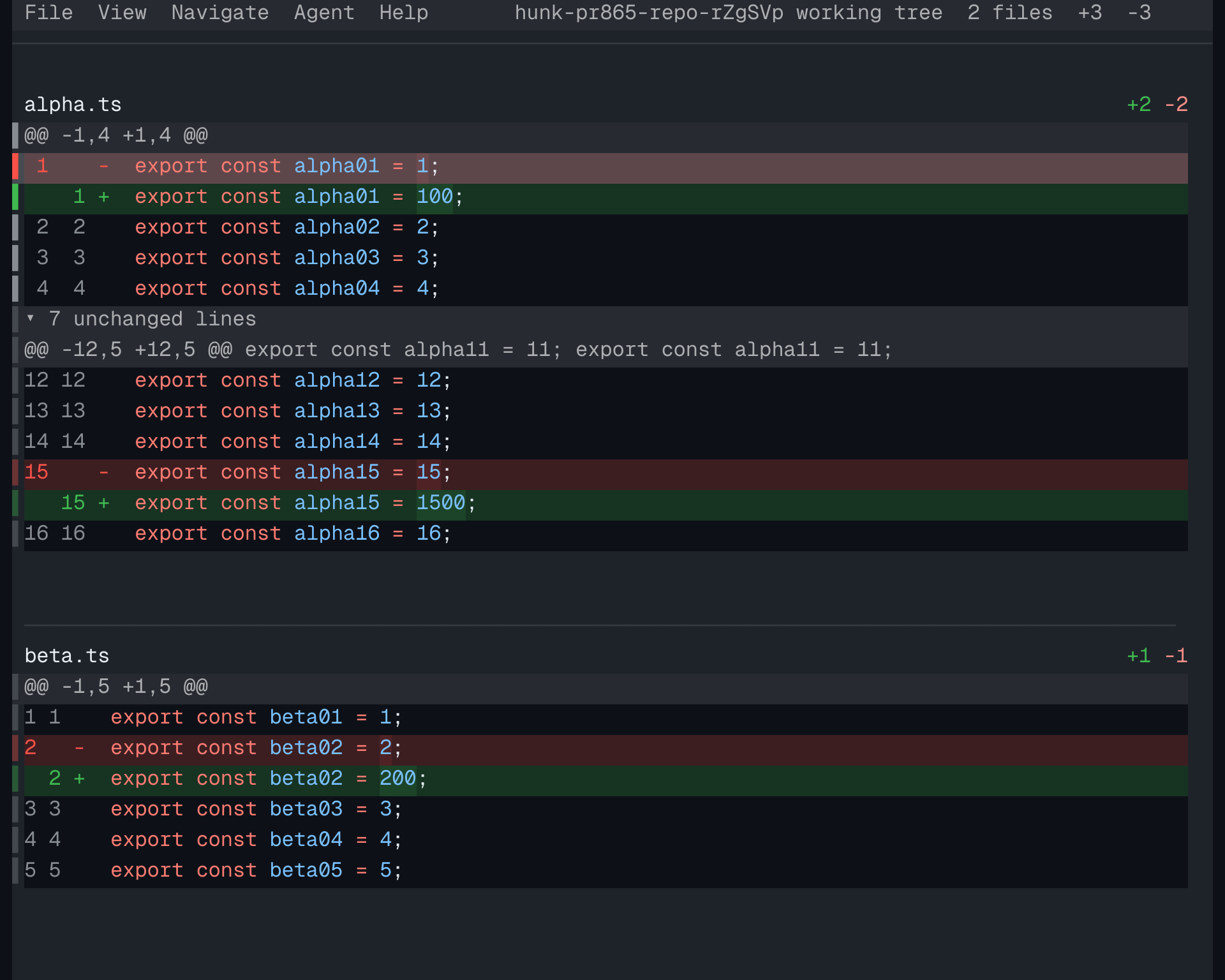

--file-gap 3

Two blank rows, then the rule, then beta.ts.

file-gap 3

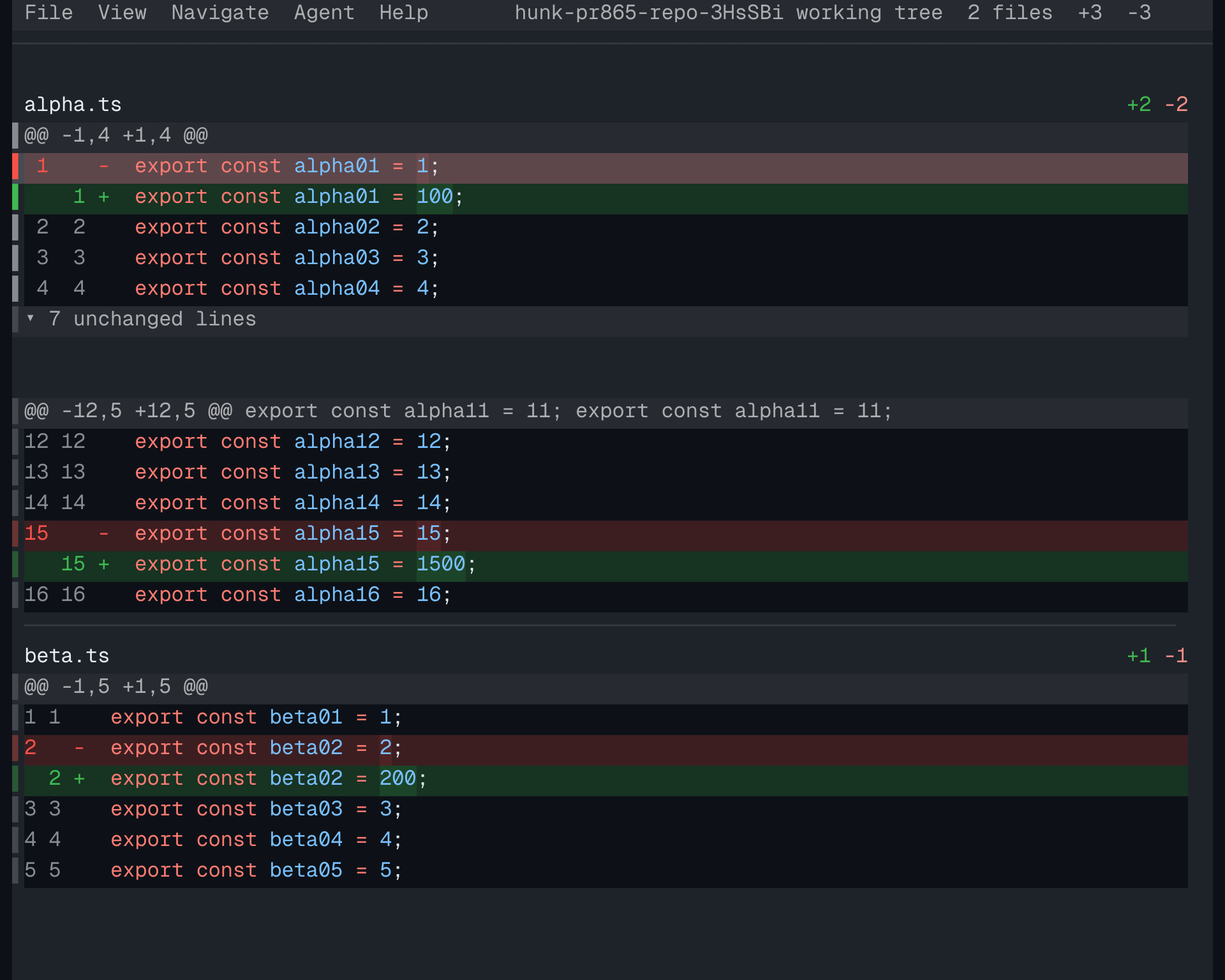

--hunk-gap 2

Two blank rows before the later @@ in alpha.ts. First hunk stays flush.

hunk-gap 2

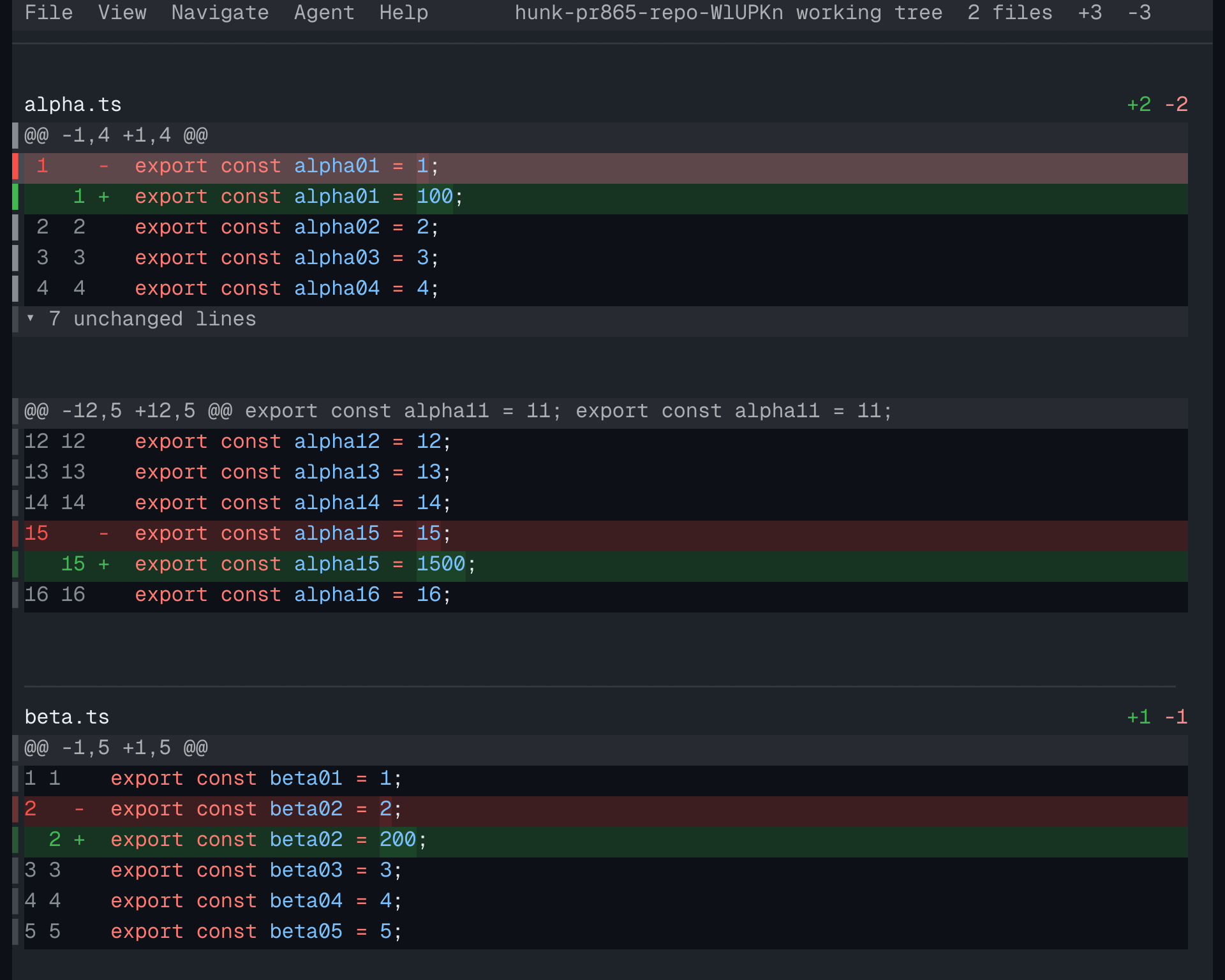

--file-gap 3 --hunk-gap 2

Both gaps together.

file-gap 3 and hunk-gap 2

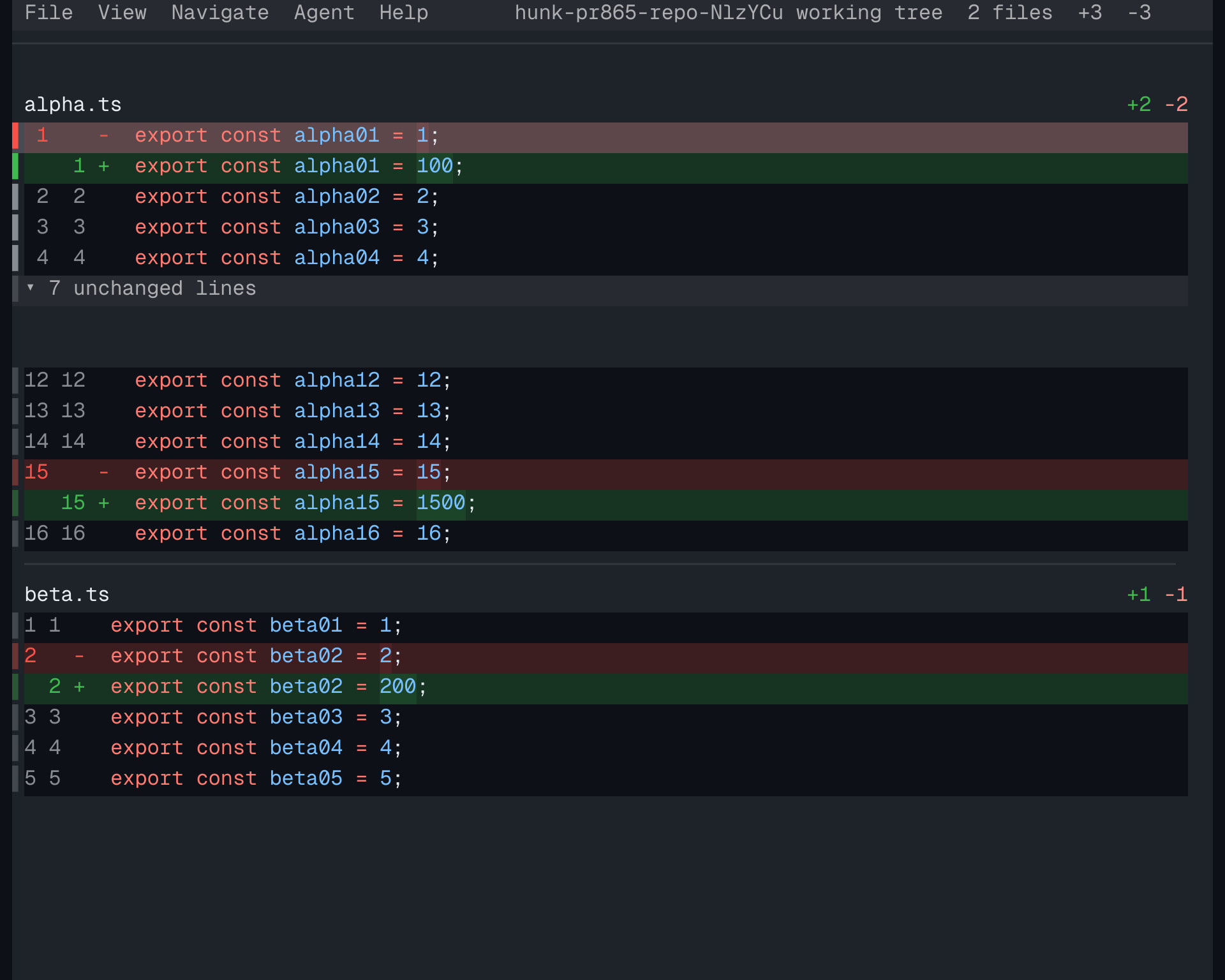

--no-hunk-headers --hunk-gap 2

Blanks still appear before later hunk content when hunk headers are hidden.

no hunk headers with hunk-gap 2

Let reviewers set file_gap and hunk_gap from config or CLI so the
review stream can add or hide vertical space between files and hunks.
@greptile-apps

greptile-apps Bot commented Aug 26, 2026

Copy link
Copy Markdown
Contributor

PR author is not in the allowed authors list.

@vercel

vercel Bot commented Aug 26, 2026

Copy link
Copy Markdown

@Ajay-Satish-01 is attempting to deploy a commit to the Modem Team on Vercel.

A member of the Team first needs to authorize it.

@Ajay-Satish-01

Copy link
Copy Markdown
Author

@benvinegar, would you be able to take a look at this? Thanks

@benvinegar

benvinegar commented Aug 27, 2026

Copy link
Copy Markdown
Member

I'm good with the behavior (adding the config + feature) - good call

I just want to look over the code first
