⚡ A powerful & easy to use 100% Kotlin chart library for Android ⚡

It comes with library view based chartLib and composeable chartLibCompose

Packagename changed ! 🛑

During the full Kotlin conversion,

• 4.0 🛑 package name changed to info.appdev.charting
• 4.0 🛑 MPPointF in renamed to PointF
• 4.0 🛑 MPPointD in renamed to PointD
• 4.1 🛑 methods like setSomethingEnabled(true) are now properties like isSomething = true
• 5.0 🛑 Remove legacy package name
• 5.1 🛑 Entry is now an EntryFloat, btw, there is now a EntryDouble as well
• 5.1 🛑 BarEntry is now an BarEntryFloat, btw, there is now a BarEntryDouble as well
• 5.1 🛑 BubbleEntry is now an BubbleEntryFloat
• 5.1 🛑 PieEntry is now an PieEntryFloat
• 5.1 🛑 RadarEntry is now an RadarEntryFloat
• 5.1 🛑 CandleEntry is now an CandleEntryFloat

Project status: maintenance mode

Issues are ignored, but pull requests are not. If you need to get something done, submit a PR!

Gradle Setup with jitpack.io

repositories {
    maven { url = uri("https://jitpack.io") }
}

dependencies {
    implementation("com.github.AppDevNext.AndroidChart:chartLib:VERSION")
    // or for compose
    implementation("com.github.AppDevNext.AndroidChart:chartLibCompose:VERSION")
}

Gradle Setup with Maven Central [snapshot]

Currently only from Maven Central snapshot staging is provided

repositories {
    maven { url 'https://central.sonatype.com/api/v1/publisher/deployments/download/' }
}

dependencies {
    implementation 'info.mxtracks:chart:${latestVersion}-SNAPSHOT'
}

LineChart (with legend, simple design)

LineChart (with legend, simple design)

LineChart (cubic lines)

LineChart (gradient fill)

BarChart (with legend, simple design)

BarChart (grouped DataSets)

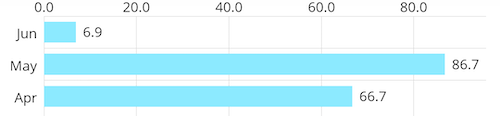

Horizontal-BarChart

Combined-Chart (bar- and linechart in this case)

PieChart (with selection, ...)

ScatterChart (with squares, triangles, circles, ... and more)

CandleStickChart (for financial data)

BubbleChart (area covered by bubbles indicates the yValue)

RadarChart (spider web chart)
